BLDC모터/DC파워

Rated voltage48VDC
Rated current13A
Rated power400W
Rated speed3,000RPM
Shaft diameterø15
Weight2.4kg
Rated torque 13kgf-cm
Length of body 82mm
Poles10
Degree of protectIP65
Operating Environment-20℃~40℃ /  0~80%RH
ReducerK10H□BU / K10H□BTH
모터드라이버MD400>


 □104. K10X series

K10XH 시리즈

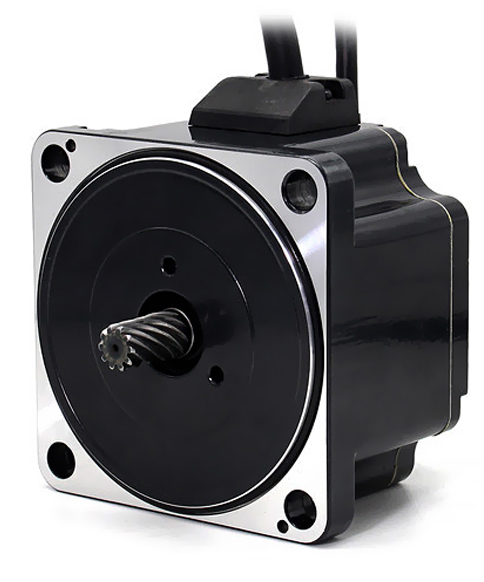

K10XH400N9-01

Rated voltage
48VDC
Rated current
13A
Rated power
400W
Rated speed
3,000RPM
Shaft diameter
ø15
Weight
2.4kg
Rated torque
13kgf-cm
Length of body
82mm
Poles
10
Degree of protect
IP65
Operating Environment
-20℃~40℃ /  0~80%RH
ReducerK10H□BU / K10H□BTH
모터드라이버
MD400>


모터 타입

엔코더, 감속기어, 브레이크를 결합한 모터를 용도에 맞게 선택하세요.


D-cut type
K10XS400N9
Geared type
K10XH400N9-02
Geared & Encoder type
K10XH400N9-01(E)
K10XH400N9-01ED
Geared & Electric Brake
K10XH400N9-01(B)



모터 도면





 모터 단자 Connector


  DC
  MOLEX5264-05


PIN
1
2
3
4
5
Name
Hu
Hv
Hw
Gnd
Vcc

  Encoder

  SMH250-05


PIN
1
2
3
4
5
Name
GndBA5VDCZ




--
