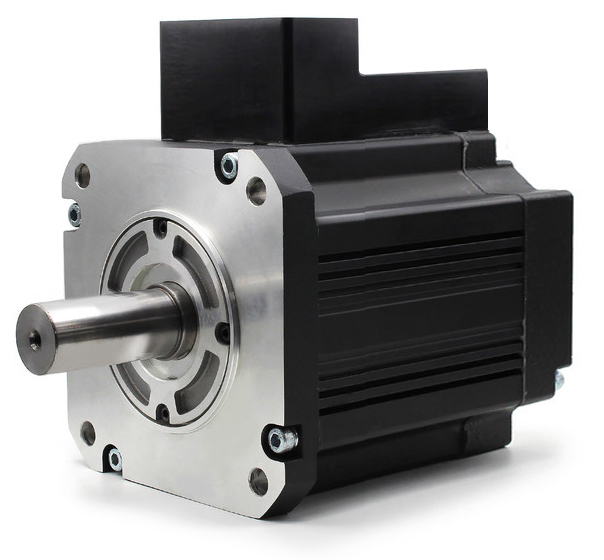

ㅁ180.  BLJ Series

 Manual

모터 타입



Key type
BLJS4K20A2000
BLJM4K20A3500


제품 상세



Motor
BLJS4K20A2000BLJM4K20A3500
Rated voltage
48VDC
48VDC
Rated current
56A
97A
Rated power
2KW3.5KW
Rated speed
2,000RPM
2,000RPM
Shaft diameter
Ф35
Ф35
Weight
16kg
26kg
Rated torque
96 kgf-cm
167 kgf-cm
Length of body
172mm
232mm
Poles
8poles/12slots
8poles/12slots
Degree of protect

 IP54

IP54
Operating Environment
-20℃~40℃ / 0~80%RH
-20℃~40℃ /  0~80%RH
Motor Driver
MD2K
MD2K
Download
CAD      3D       PDF
CAD       3D       PDF
구입하기
Buy

Buy



모터 도면







모터 단자 Connector


DC
MOLEX5264-05


PIN12345
NAMEHuHvHwGndVcc


--
