BLDC Motor. DC Power

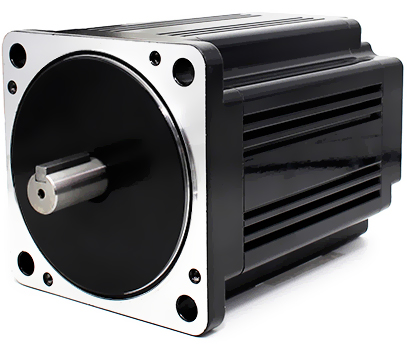

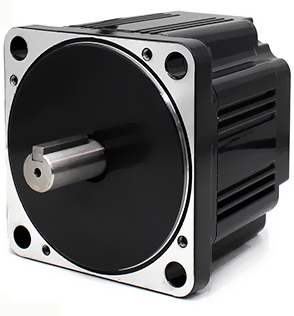

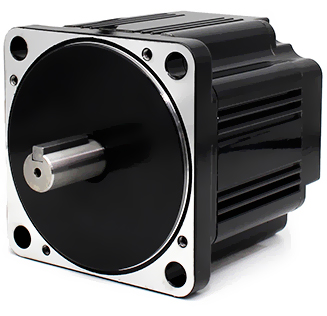

□90

BL9 Series


민첩한 제어력을 높이는 엔코더, 높은 효율성을 제공하는 감속기어와 브레이크를 결합한 모터를 용도에 맞게 선택하세요.


 Manual

모터 타입



Key type
BL9N2K30A0200
BL9M2K30A0350
BL9L2K30A0400
BL9L4K30A0500
Encoder type
BL9N2K30E0200
BL9M2K30E0350
BL9L2K30E0400
BL9L4K30E0500
Brake type
BL9N2K30B0200
BL9M2K30B0350
BL9L2K30B0400
BL9L4K30B0500
Geared type
BL9N2G30A0200
BL9M2G30A0350


Geared & encoder
BL9N2G30E0200
BL9M2G30E0350


Geared & brake
BL9N2G30B0200
BL9M2G30B0350


Brake & encoder
BL9N2G30C0200
BL9M2K30C0350
BL9L2K30C0400
BL9L4K30C0500


제품 상세



Motor
BL9N2□30□0200BL9M2□30□0350
BL9L2□30□0400
BL9L4□30□0500
Rated voltage
24VDC
24VDC
24VDC
48VDC
Rated power
200W
350W
400W
500W
Rated current
10A16A
20A
15A
Rated speed
3,000RPM
3,000RPM
3,000RPM
3,000RPM
Shaft diameter
Ф14
Ф14
Ф14
Ф14
Weight
1.9kg
2.5kg
3.5kg
3.5kg
Rated torque
6.4 kgf-cm
11.2 kgf-cm
14 kgf-cm
16 kgf-cm
Length of body
72.5mm
87.5mm
112.5mm
112.5mm
Poles
8poles/12slots
8poles/12slots
8poles/12slots
8poles/12slots
Degree of protect

 IP54

IP54
IP54
IP54
Operating Environment
-20℃~40℃ / 0~80%RH
-20℃~40℃ /  0~80%RH
-20℃~40℃ /  0~80%RH
-20℃~40℃ /  0~80%RH
Motor Driver
MD200 / MD400
MD400 / MD400T
MD400
MD400
Download
CAD    3D    PDFCAD    3D    PDF
CAD    3D    PDF
CAD    3D    PDF
구입하기
Buy

BuyBuyBuy


모터 도면




모터 단자 Connector


DC
MOLEX5264-05


PIN
1
2
3
4
5
Name
Hu
Hv
Hv
Gnd
Vcc
