BLDC모터/AC파워

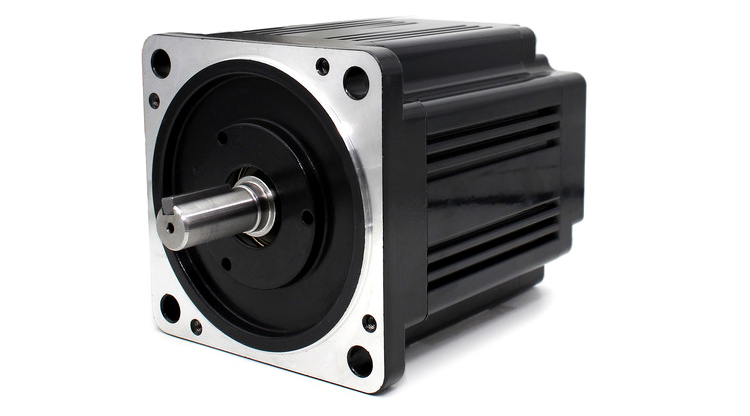

□104. BLA Series

BLAMC□30□0750

Buy
Rated voltage
220VAC
Rated current
3.0A
Rated power
750W
Rated speed
3,000RPM
Shaft diameter
ø14
Weight
4.3kg
Rated torque
23.8 kgf-cm
Length of body
116mm
Poles
8poles/12slots
Degree of protect

 IP54

Operating Environment
-20℃~40℃ / 0~80%RH
Reducer
MBVG104
모터드라이버
MDA1K>

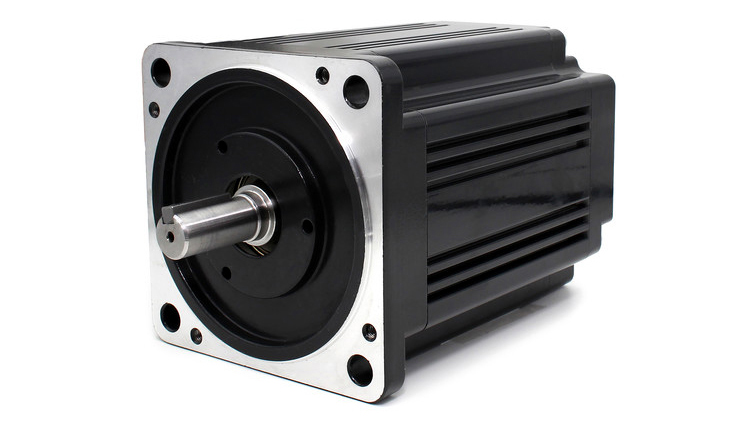

□104. BLA Series

BLALCK30□1000

Buy
Rated voltage
220VAC
Rated current
4.2A
Rated power
1KW
Rated speed
3,000RPM
Shaft diameter
ø14
Weight
5.8kg
Rated torque
31.8 kgf-cm
Length of body
146mm
Poles
8poles/12slots
Degree of protect

 IP54

Operating Environment
-20℃~40℃ / 0~80%RH
Reducer
MBVG104
모터드라이버
MDA1K>

모터 타입



Key type
BLAMCK30A0750
BLALCK30A1000
Encoder type
BLAM4K30E0750
BLALCK30E1000
BLAM4K30E0750-ED
BLALCK30E1000-ED
Electric Brake typeBLAM4K30B0750
BLALCK30B1000
Geared type
BLAM4G30A0750

Geared & Encoder type
BLAM4G30E0750

BLAM4G30E0750-ED

Geared & Electric Brake  type
BLAM4G30B0750

Electric Brake & encoder type
BLAM4K30C0750
BLAL4K30C1000
BLAM4K30C750-ED
BLAL4K30C1000-ED



모터 도면






모터 단자 Connector


AC
MOLEX5557-12


PIN
1
2
3
4
5
6
Name
V
U
-
F.G
Vcc
Gnd


--
