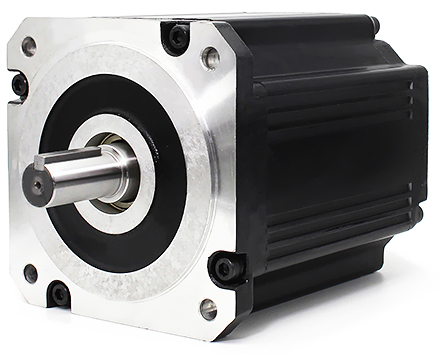

BLDC Motor. DC Power


□130

BLD Series


민첩한 제어력을 높이는 엔코더, 높은 효율성을 제공하는 감속기어와 브레이크를 결합한 모터를 용도에 맞게 선택하세요.


Manual





모터 타입



Key type
BLDL4K30A2000
Brake type
BLDL4K30B2000


제품 상세



Motor
BLDL4K30A2000
BLDL4K30B2000
Rated voltage
48VDC
48VDC
Rated current
43.6A
43.6A
Rated power
2KW
2KW
Rated speed
3,000RPM
3,000RPM
Shaft diameter
Ф19
Ф19
Weight
9.5kg
9.5kg
Rated torque
64 kgf-cm
64 kgf-cm
Length of body
190.3mm
190.3mm
Poles
8poles/12slots
8poles/12slots
Degree of protect
IP54
IP54
Operating Environment
-20℃~40℃ / 0~80%RH
-20℃~40℃ / 0~80%RH
Motor Driver
MD750T / MD2K
MD750T / MD2K
Download
CAD       3D      PDF
CAD      3D      PDF
구입하기
Buy

Buy



모터 도면




모터 단자 Connector


DC
MOLEX5264-05


PIN12345
NAMEHuHvHwGndVcc
