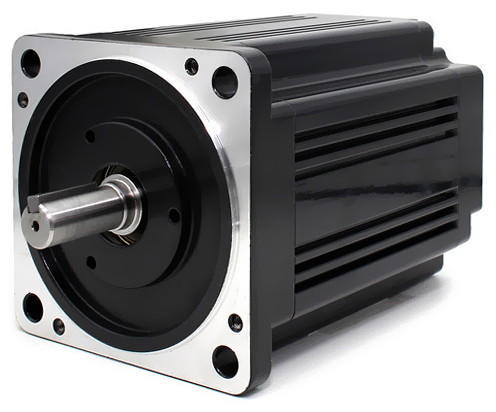

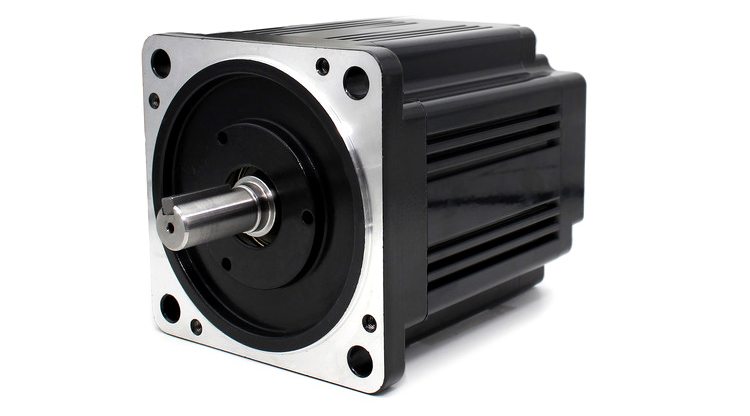

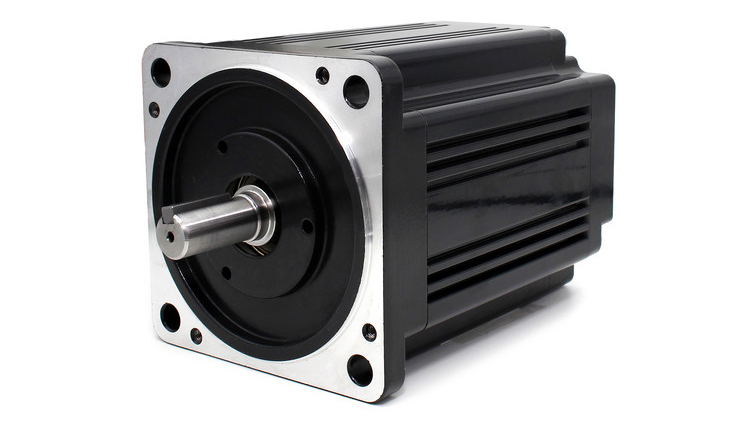

BLA Series


민첩한 제어력을 높이는 엔코더, 높은 효율성을 제공하는 감속기어와 브레이크를 결합한 모터를 용도에 맞게 선택하세요.


 Manual



모터 타입



Key type
BLAM4K30A0750
BLAMCK30A0750
BLAL4K30A1000
BLALCK30A1000
Encoder type
BLAM4K30E0750

BLAL4K30E1000
BLALCK30E1000
Brake type
BLAM4K30B0750

BLAL4K30B1000
BLALCK30B1000
Geared type
BLAM4G30A0750
BLAMCG30A0750


Geared & encoder
BLAM4G30E0750
BLAMCG30E0750


Geared & brake
BLAM4G30B0750
BLAMCG30B0750


Brake & encoder


BLAL4K30C1000


제품 상세



Motor
BLAM4□30□0750
BLAL4K30□1000
Rated voltage
48VDC
48VDC
Rated current
18.5A
24.7A
Rated power
750W1KW
Rated speed
3,000RPM
3,000RPM
Shaft diameter
Ф14
Ф14
Weight
4.3kg
5.8kg
Rated torque
23.8 kgf-cm
31.8 kgf-cm
Length of body
116mm
146mm
Poles
8poles/12slots
8poles/12slots
Degree of protect

 IP54

IP54
Operating Environment
-20℃~40℃ / 0~80%RH
-20℃~40℃ /  0~80%RH
Motor Driver
MD750
MD1K
Reducer
MBVG104
Download
CAD        3D       PDF
CAD        3D        PDF
구입하기
Buy

Buy



모터 도면




모터 단자 Connector


DC
MOLEX5264-05


PIN
1
2
3
4
5
Name
Hu
Hv
Hw
Gnd
Vcc







Encoder
SMH250-05


PIN
1
2
3
4
5
Name
Gnd
B
A
5VDC
Z
