□90

K9 Series


민첩한 제어력을 높이는 엔코더, 높은 효율성을 제공하는 감속기어와 브레이크를 결합한 모터를 용도에 맞게 선택하세요.


Manual



모터 타입



D-cut type

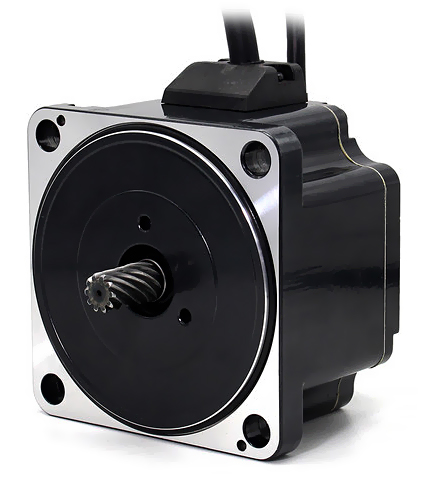

K9XS100N2
Gear type

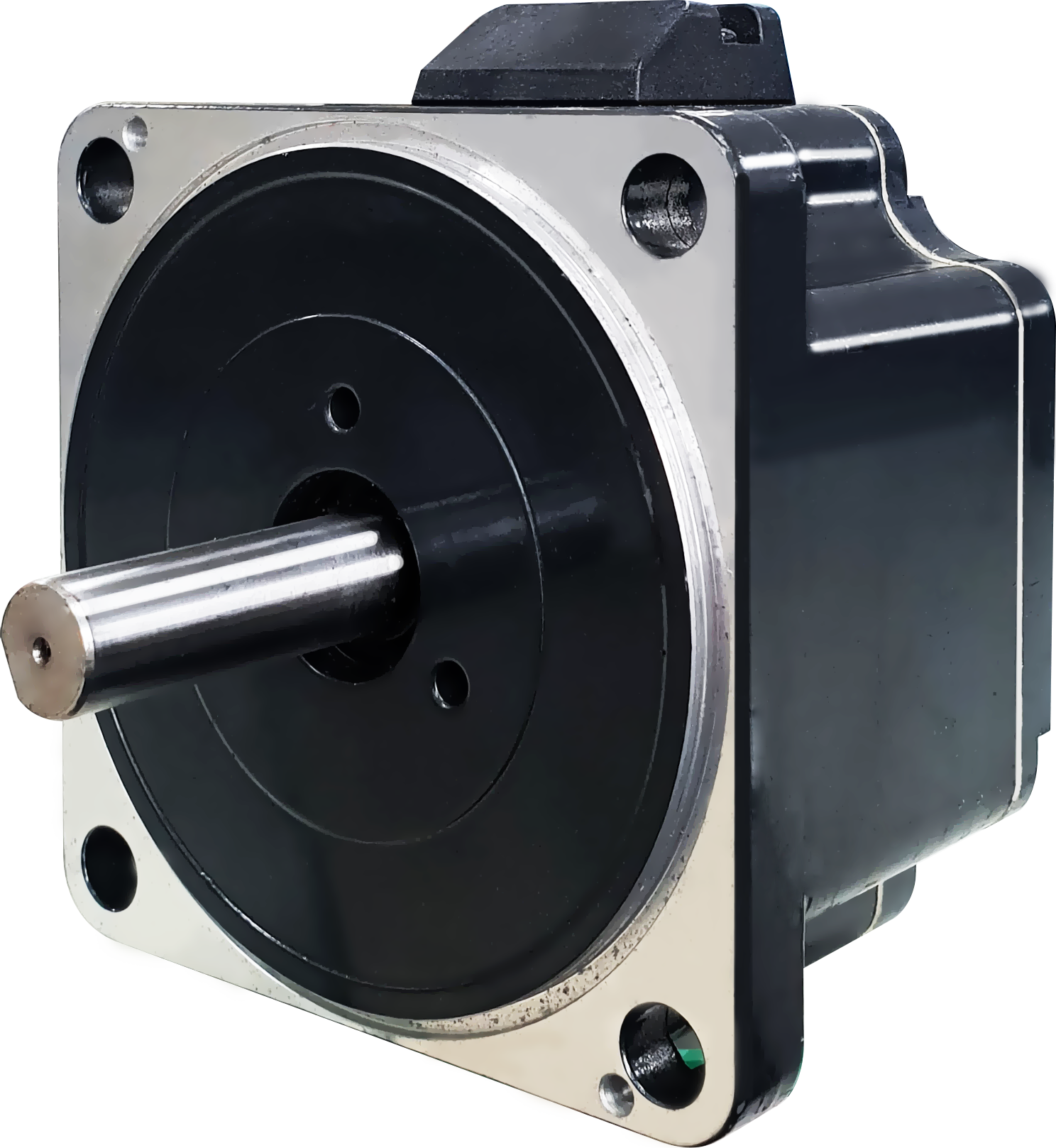

K9XH100N2
Geared & encoder
K9LH100N2-04


제품 상세



Motor
K9X□100N2 K9LH100N2-04
Rated voltage
24VDC
24VDC
Rated current
6A
6A
Rated power
100W
100W
Rated speed
2,500RPM
2,500RPM
Shaft diameter
Ф12
Ф12
Weight
1.3kg
1.3kg
Rated torque
4kgf-cm
4kgf-cm
Poles
1010
Degree of protect
IP65
IP65
Operating Environment
-20℃~40℃ / 0~80%RH
-20℃~40℃ / 0~80%RH
Motor Driver
MD100
MD100
Download
CAD        3D        PDF
CAD        3D        PDF
구입하기
Buy


Buy



모터 도면





모터 단자 Connector


DC(X series)
MOLEX5557-08


PIN
1
2
3
4
5
6
7
8
Name
Vcc
U
V
W
Gnd
Hw
Hv
Hu








DC(L series)
MOLEX5557-08


PIN
1
2
3
4
5
6
7
8
Name
Vcc
U
V
W
Gnd
Hu
Hv
Hw
