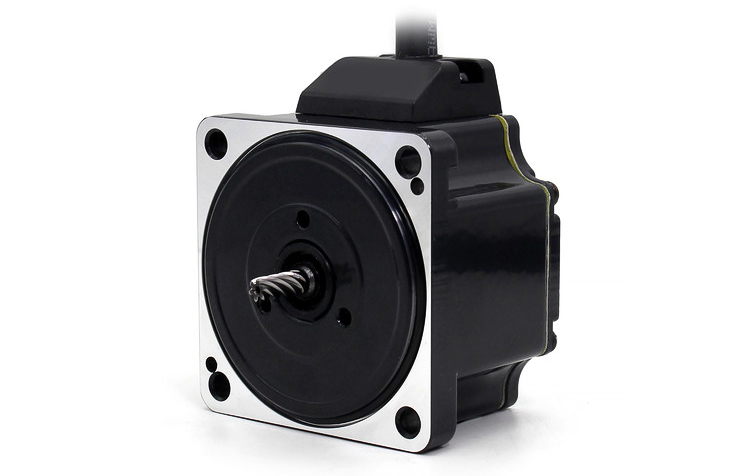

□60

K6 Series


민첩한 제어력을 높이는 엔코더, 높은 효율성을 제공하는 감속기어와 브레이크를 결합한 모터를 용도에 맞게 선택하세요.


 Manual



모터 타입



D-cut type
K6XS30N2
Encoder type
K6LS40N2-10
Gear type
K6XH30N2
Geared & encoder
K6LH40N2-06


제품 상세



Motor
K6XS30N2
K6LS40N2-10
K6XH30N2
K6LH40N2-06
Rated voltage
24VDC
24VDC
24VDC
24VDC
Rated current
2.1A 2.1A
2.1A
2.1A
Rated power
40W
40W
30W
30W
Rated speed
2,500RPM
4,500RPM
2,500RPM
4,500RPM
Shaft diameter
Ф8
Ф8
Ф8
Ф8
Weight
0.5kg
0.5kg
0.5kg
0.5kg
Rated torque
1.2 kgf-cm
1.2 kgf-cm
1.2 kgf-cm
1.2 kgf-cm
Length of body
42mm
42mm
42mm
61.5mm
Poles
10
10
10
10
Degree of protect

 IP65

IP65
IP65
IP65
Operating Environment
-20℃~40℃ / 0~80%RH
-20℃~40℃ /  0~80%RH
-20℃~40℃ /  0~80%RH
-20℃~40℃ /  0~80%RH
Motor Driver
MD50 / MD50C / PNT50
MD50 / MD50C / PNT50
MD50 / MD50C / PNT50
MD50 / MD50C / PNT50
Reducer


K6H_B / K6H_BTH
K6H_B / K6H_BTH
Download
CAD    3D    PDF
CAD   3D   PDF

K6H_B : CAD   3D   PDF
K6H_BTH : CAD   3D   PDF

K6H_B : CAD  3D   PDF
K6H_BTH : CAD  3D   PDF

구입하기
Buy

Buy
Buy
Buy



모터 도면






모터 단자 Connector


DC(X series)
MOLEX5557-08


PIN
1
2
3
4
5
6
7
8
Name
Vcc
U
V
W
Gnd
Hw
Hv
Hu







DC(L series)
MOLEX5557-08


PIN
1
2
3
4
5
6
7
8
Name
Vcc
U
V
W
Gnd
Hu
Hv
Hw
